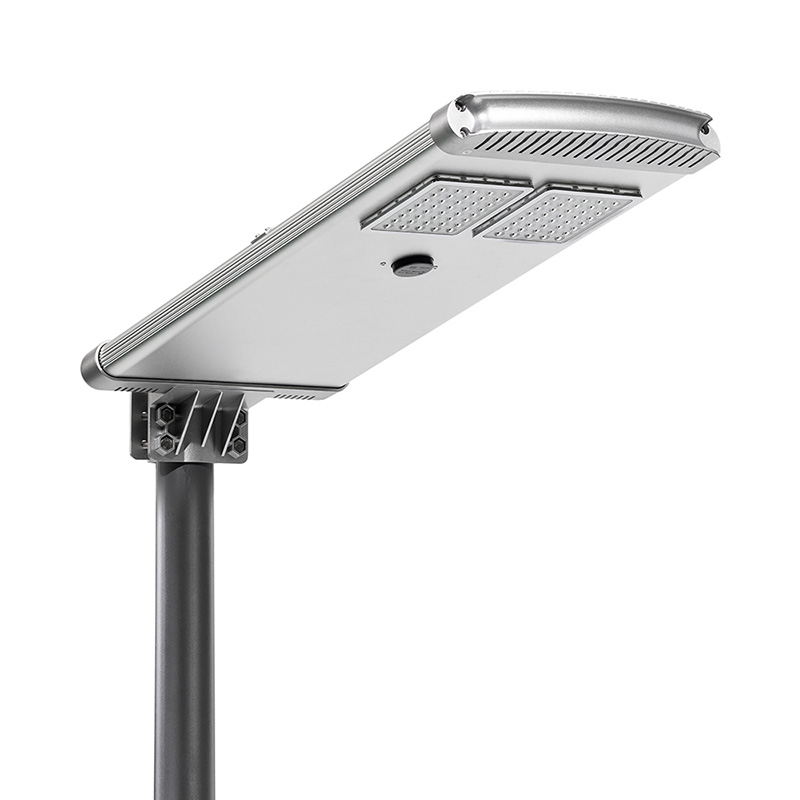

New design waterproof 40w 50w 80w 100w 120w integrated all in one led solar street light

LED：50WBridgelux chips3030（Life time 100000hours）
Lumen(LM)：170LM/W
Colour Temp：6000K ~6500K（it can be customized）
LifePO4 Battery：384WH 12.8V
Solar Panel：18V70WImported High Efficiency Monocrystalline Silicon
Install Pole diameter：60-65mm
Solar Charging Time：6 hours by bright sunlight
Cloudy/Rainy days：12 Cloudy/Rainy days
Material：High Class Aluminum（anodic oxidation treatment）

Features

  1. High class Integrated die-casting Aluminum alloy case .
  2. Lighting mode use intelligence radar senor,sensor long distance.
  3. 140° view angle,lighting more area.
  4. Easy to install,maintance,Auto on/off
  5. With remote control，UVA technology，bring high corrosion resistance，30m remote control operation，4 lighting mode.

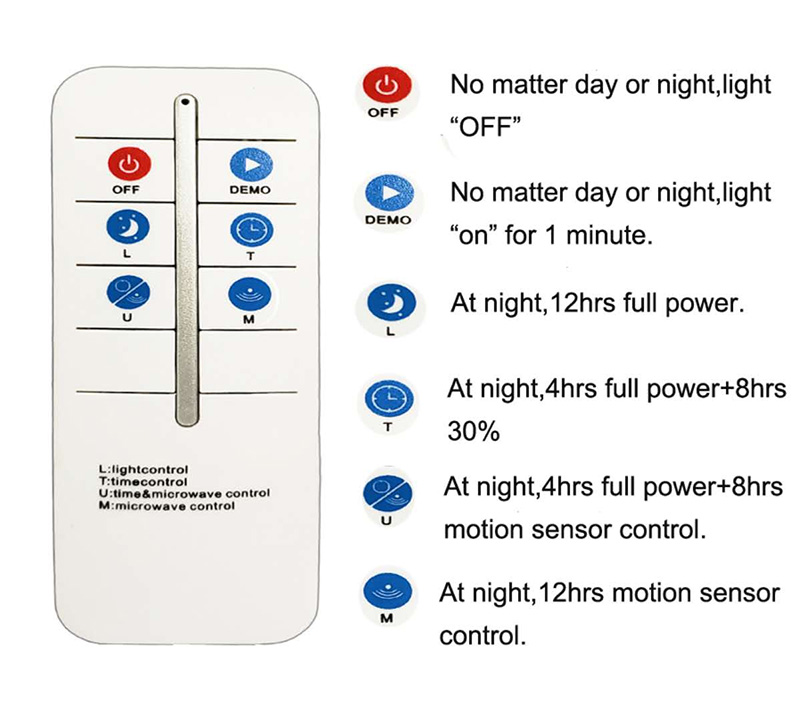

Lighting Mode

OFF: No matter day or night ,light “OFF”

DEMO: No matter day or nigh , light “ on” for 1 minute,

L : At night, 12hrs full power,

T : At night,4hrs full power +8hrs 30%,

U : At night,4hrs full power +8hrs motion sensor control,

M : At night,12hrs motion sensor control.

Specification and Dimension

specifications
Power30w40w50w60w80w100w120w
3030 LED chip80pcs80pcs160pcs160pcs160pcs240pcs240pcs
Luminous Flux170LM/W
LiFePO4 Battery230.4WH 12.8V307.2WH 12.8V384WH 12.8V460.8WH 12.8V537.6WH 12.8V691.2WH 12.8V768WH 12.8V
Solar Panel18V 50W18V 65W18V 70W18V 80W18V 100W18v 130w18v 140w
Install height4-5M6-7M7-8M8-10M9-12M9~12m
Product Size(mm)820*385*180960*385*1801190*385*1801630*385*551950*385*55
Solar charging time6 hours by bright sunlight
MaterialHigh Class Aluminum
Work temperature-25℃ to 65℃
Colour Temp6000K ~6500K（3000K-7000K can customize）
Cloudy/Rainy days12 Cloudy/Rainy days
Warranty3 Years
Remote ControlYes（1pc remote control per lot）

Advantage

  1. 3030/5050 High efficiency LED Chip, 170LM/W,Aluminium;
  2. Elegant Integrated Design,High Class Aluminum material;
  3. Degree adjustable bracket, suitable for various roads
  4. The maximum wattage can reach 120 watts, specially designed for engineering
  5. Night sensor + Microwave motion sensor+Remote Control
