5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Product Name: Street Light body
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Waterproof Index : IP66 IP67
Earthquake-proof Index : IK08 IK09
Working Temperature(℃): -20-60
Surface Color : Dark Gray, Light Gray, Black, Customized etc
Contain Accessories : Complete finished street lights
Product Features
- Aluminum bodyis made of ADC12 aluminum Die-casting, the surface treated by Spray-painting to Prevent Corrosion and Color Persistence.
- Large area heatsink fin design for fast theory in favor of the convection between cold and hot air, to keeping the good heat dissipation of lamps and increase the light whole life-time.
- Power supplierbox to keep the lamp complete and unified.
- Ventilation design to dust prevention & prevent stagnant water to achieve the light long-life time.

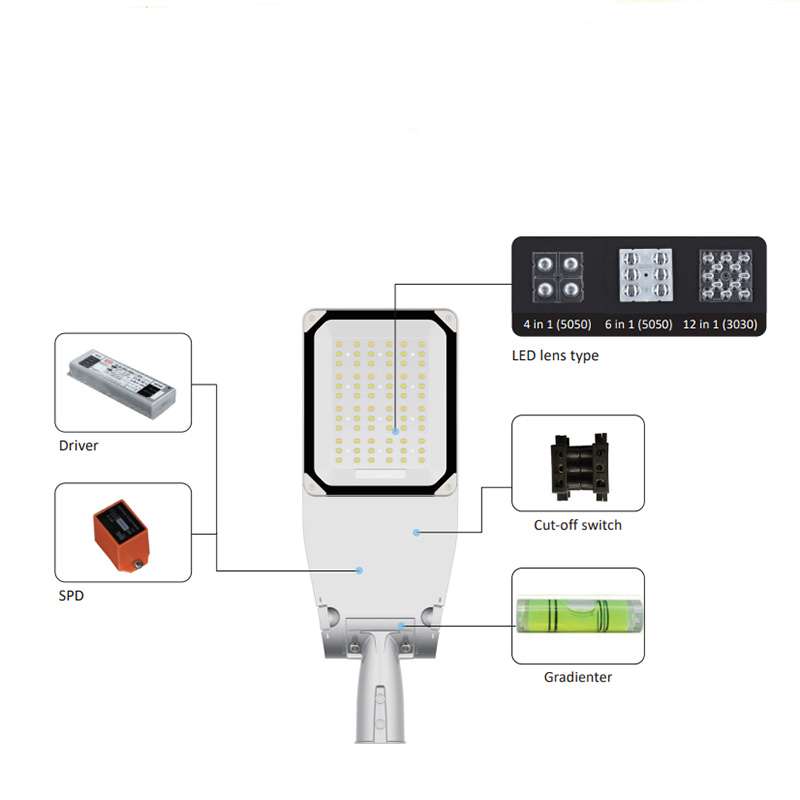

Product Details

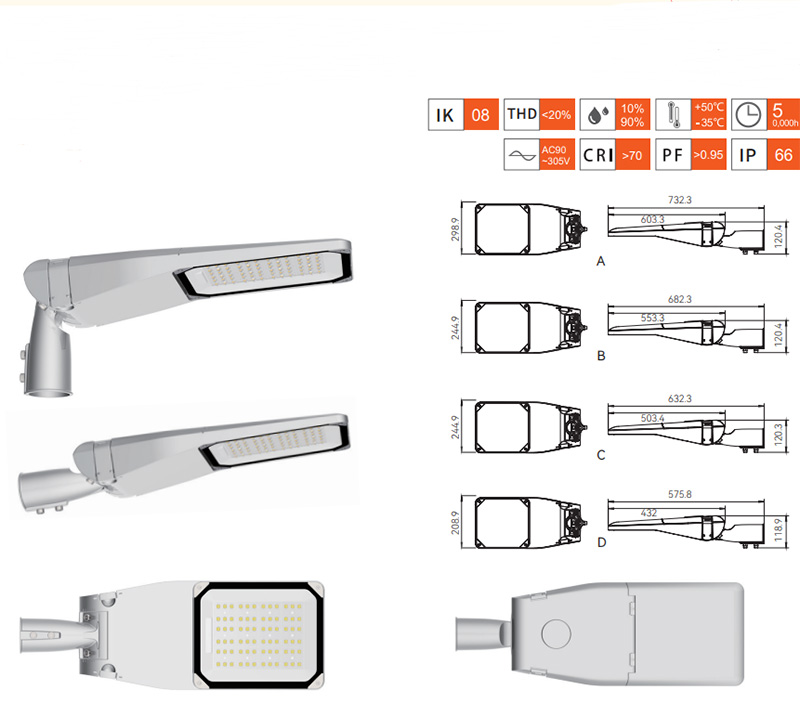

Product Size Chart
Specification and Dimension
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP Class | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Material | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co.,Ltd. is the manufacturer of Aluminum Die-Casting LED Light Housing With the various of our own developed design and technologies.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
